Rail

Name: Rail
SKU: 0

1、 Ordinary steel rail
2、 Steel rails for high-speed railways
3、 Steel rails for heavy-duty railways
4、 Protective steel rail
5、 Steel rails for urban rail transit
6、 Electrically insulated steel rail
7、 Steel rails for ballastless tracks

WhatsApp：

Email：sun@sdzssteel.com

Product Description

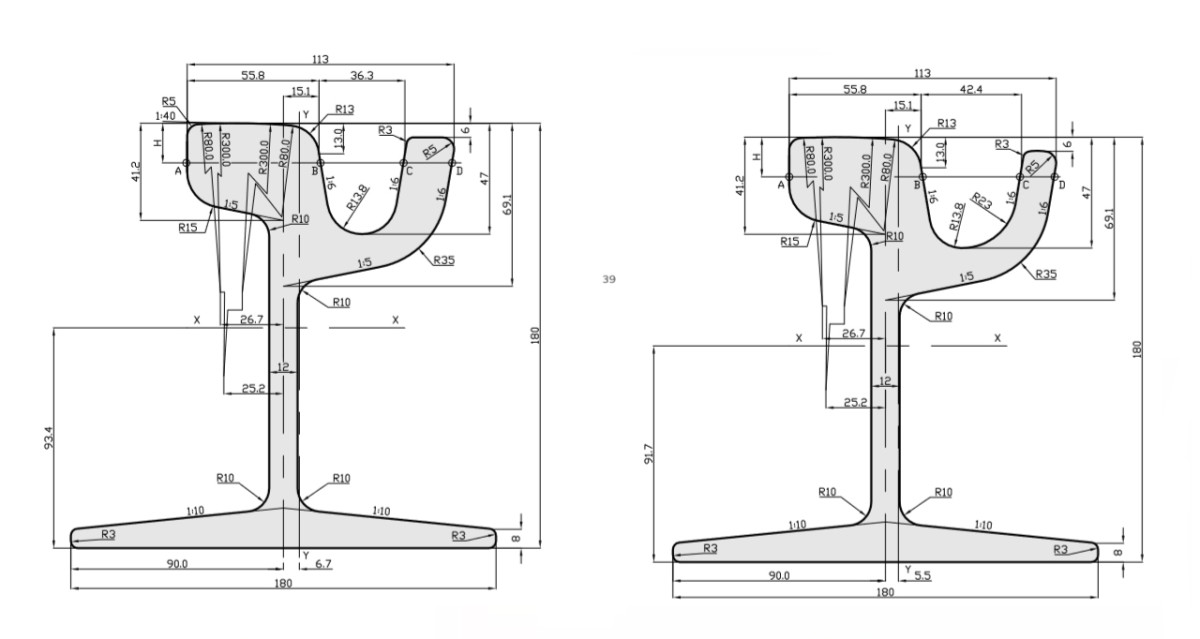

Chinese Standard Heavy Rail【Standard GB2585-2007: P38KG, P43KG, P50KG, P60KG】-Specifications
Standard: GB2585-2007
Size	Dimension(mm)				Weight	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length (m)
P38KG	68	134	114	13	38.733	U71Mn	12.5-25
P43KG	70	140	114	14.5	44.653	U71Mn	12.5-25
P50KG	70	152	132	15.5	51.514	U71Mn	12.5-25
P60KG	73	170	150	16.5	61.64	U71Mn	12.5-25

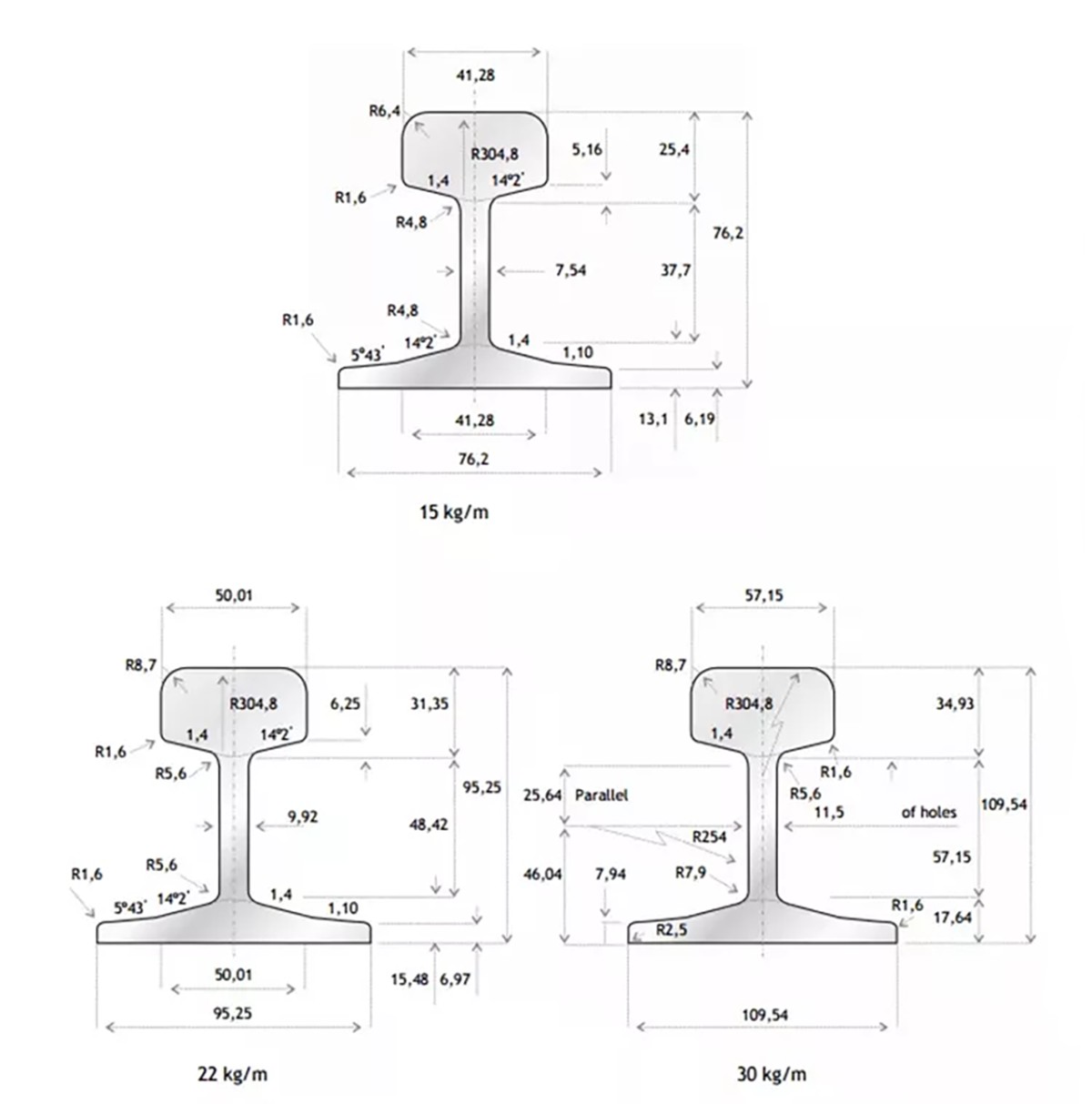

2. Chinese Standard Light Rail【Standard GB11264-89: GB6KG, GB9KG, GB12KG, GB15KG, GB22KG, GB30KG】-Standard YB222-63: 8KG, 18KG, 24KG
Specifications：Standard: GB11264-89
Size	Dimension(mm)				Weight	Material	Length(m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length(m)
GB6KG	25.4	50.8	50.8	4.76	5.98	Q235B	6月12日
GB9KG	32.1	63.5	63.5	5.9	8.94	Q235B	6月12日
GB12KG	38.1	69.85	69.85	7.54	12.2	Q235B/55Q	6月12日
GB15KG	42.86	79.37	79.37	8.33	15.2	Q235B/55Q	6月12日
GB22KG	50.3	93.66	93.66	10.72	23.3	Q235B/55Q	6月12日
GB30KG	60.33	107.95	107.95	12.3	30.1	Q235B/55Q	6月12日
Standard: YB222-63
8KG	25	65	54	7	8.42	Q235B	6月12日
18KG	40	90	80	10	18.06	Q235B/55Q	6月12日
24KG	51	107	92	10.9	24.46	Q235B/55Q	6月12日

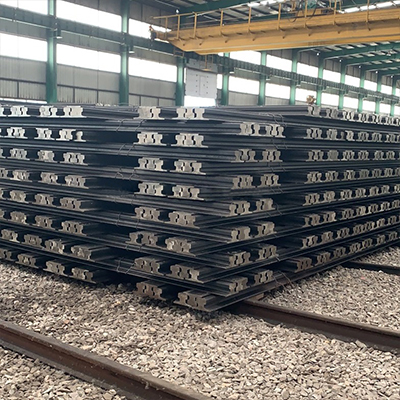

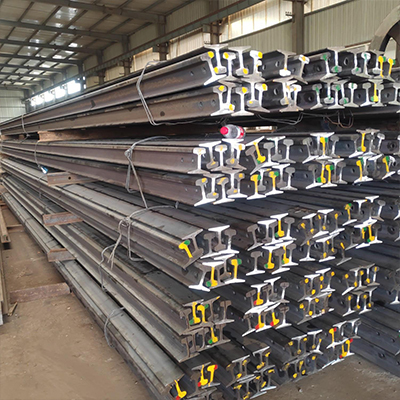

Factory Show

Contact Us

PRODUCT

Quality and After-sale Assurance



As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.



We guarantee that our steel products are of superior craftsmanship, free from design, material and process defects, and meet customer requirements.



All the steel materials are delivered only after they have passed the quality inspection and tests and been found to be qualified.
